AD CS Kurulumu – CA Kurulumu

CA, PKI AD CS olarak adlandırılan servisinin kurulumu ve konfigurasyonu hakkında vereceğim.



Kullanıcı hesapları, computer hesapları ve servis hesapları için kullanılan sertifikalar Windows ortamında sıkça kullanılır. Ayrıca network devicelar içinde kullanılır.



Standalone ve Enterprise CA olmak üzre temelde ikiye ayrılır. Standalone ca için bir domain ortamı gerekmek. Kullanıcı hesapları için sertifika requestleri manuel yapılır ayrıca bir sertifika template yapısı kullanılmaz. Auto enrollment yapısıda bulunmaz. Ancak Enterprise CA için bir AD DS ihtiyacı bulunur, GPO ile sertifikalar dağıtılabilir AD DS ile recovations yapısı kullanılabildiği gini template ve autoenrollment desteği de bulunur.

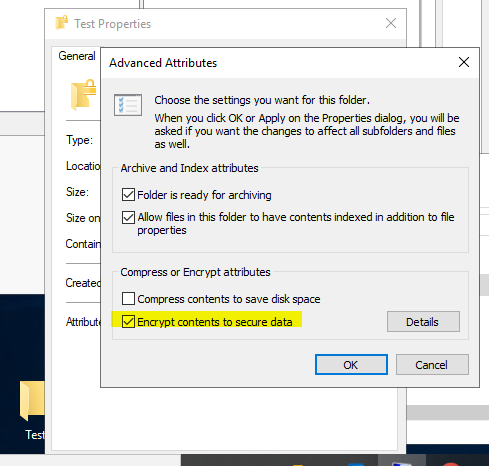

802.1x, EFS, Smart Card Auth (2FA), WebServer gibi çokça serviste kullanılan AD CA nin kurulum adımları aşağıdaki gibidir.



Domain ortamında Enterprise Admin yetkisine sahip bir account ile kurulum yapılmakatadır.

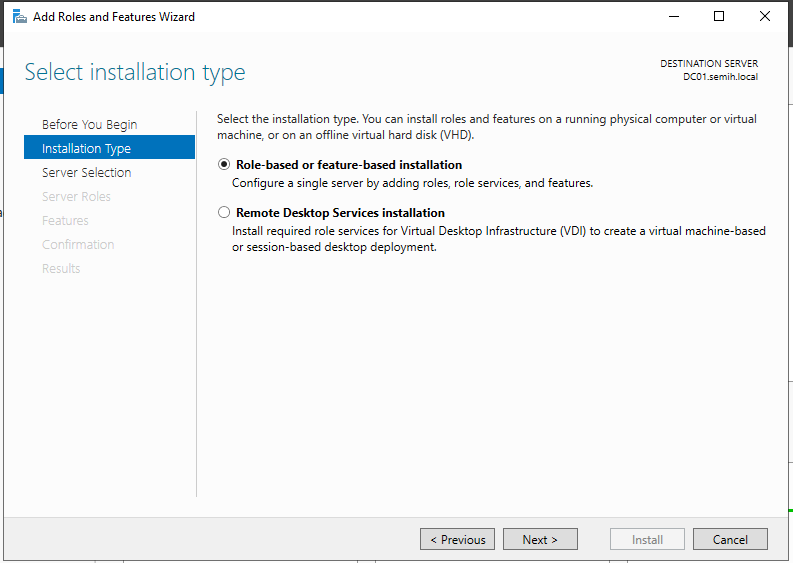

Machine generated alternative text:
Add Roles and Features Wizard
Select installation type
DESTINATION SERVER
Before You Begin
Installation Type
Server Selection
Cc:nfrmetior
Select the installation type. You can install roles and features on a running physical computer or virtual
machine, or on an offline virtual hard disk (VHD).
• Role-based or feature-based installation
Configure a single server by adding roles, role services, and features.
O
Remote Desktop Services installation
Install required role services for Virtual Desktop Infrastructure (VDI) to create a virtual machine-based
or session-based desktop deployment.
Install
Cancel

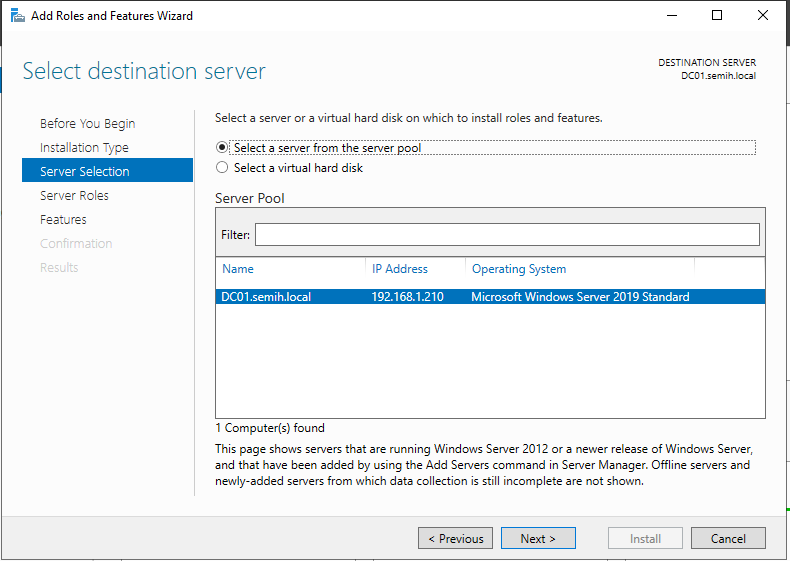

Machine generated alternative text:
Add Roles and Features Wizard
Select destination server
DESTINATION SERVER
Before You Begin
Instel'eticr Type
Server Selection
Server Roles
Features
Cc:rfrmetior
Select a server or a virtual hard disk on which to install roles and features.
• Select >erygr from thg Server pgp!_<br />
O<br />
Select a virtual hard disk<br />
Server Pool<br />
Filter:<br />
Name<br />
DCOI .semih.local<br />
I Computer(s) found<br />
IP Address<br />
Operating System<br />
Microsoft VVindows Server 2Crg Standard<br />
This page shows servers that are running Windows Server 2012 or a newer release of Windows Server,<br />
and that have been added by using the Add Servers command in Server Manager. Offline servers and<br />
ewly-added servers from which data collection is still incomplete are not shown.<br />
Install<br />
Cancel

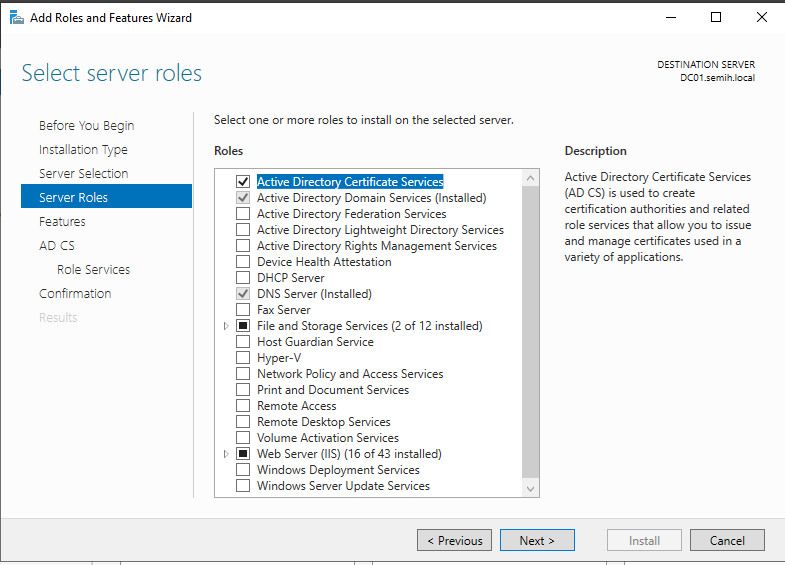

Machine generated alternative text:
Add Roles and Features Wizard
Select server roles
Before You Begin
Installation Type
Server Selection
Server Role:
Features
AD CS
Role Services
Confirmation
Select one or more roles to install on the selected server.
Roles
ctive Directo Certificate Service
Active Directory Domain Services (Installed)
Active Directory Federation Services
Active Directory Lightw'eight Directory Services
Active Directory Rights Management Services
Device Health Attestation
DHCP Server
DNS Server (Installed)
Fax Server
File and Storage Services (2 of 12 installed)
Host Guardian Service
Hyper— V
Network Policy and Access Services
Print and Document Services
Remote Access
Remote Desktop Services
Volume Activation Services
Web Server (IIS) (16 of 43 installed)
Windows Deploymnent Services
Windows Server Update Services
DESTINATION SERVER
Description
Active Directory Certificate Services
(AD CS) is used to create
certification authorities and related
role services that allow you to issue
and manage certificates used in a
variety of applications.
Install
Cancel

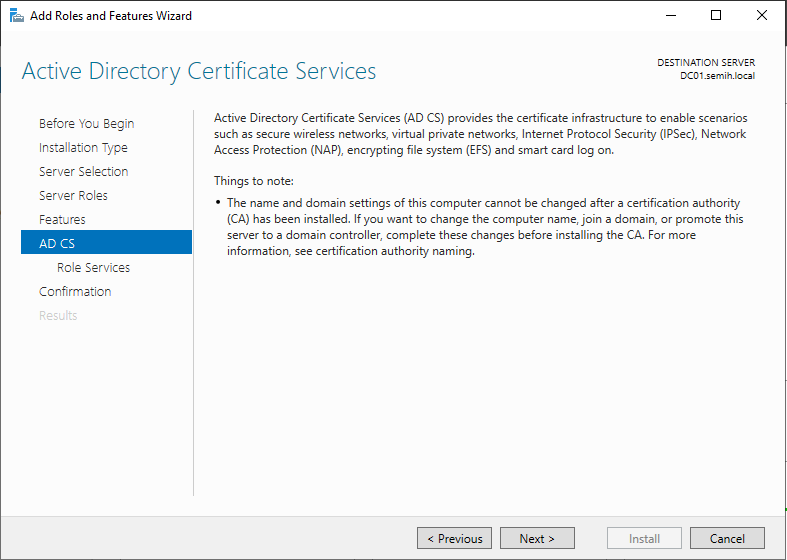

Machine generated alternative text:
Add Roles and Features Wizard
Active Directory Certificate Services
DESTINATION SERVER
Before You Begin
Installation Type
Server Selection
Server Roles
Feetures
AD CS
Role Services
Confirmation
Active Directory Certificate Services (AD CSI provides the certificate infrastructure to enable scenarios
such as secure wireless netvvorks, virtual private networks, Internet Protocol Security (IPSec), Network
Access Protection (NAP), encrypting file system (EFS) and smart card log on.
Things to note:
• The name and domain settings of this computer cannot be changed after a certification authority
(CA) has been installed. If you want to change the computer name, join a domain, or promote this
server to a domain controller, complete these changes before installing the CA. For more
information, see certification authority naming.
Install
Cancel

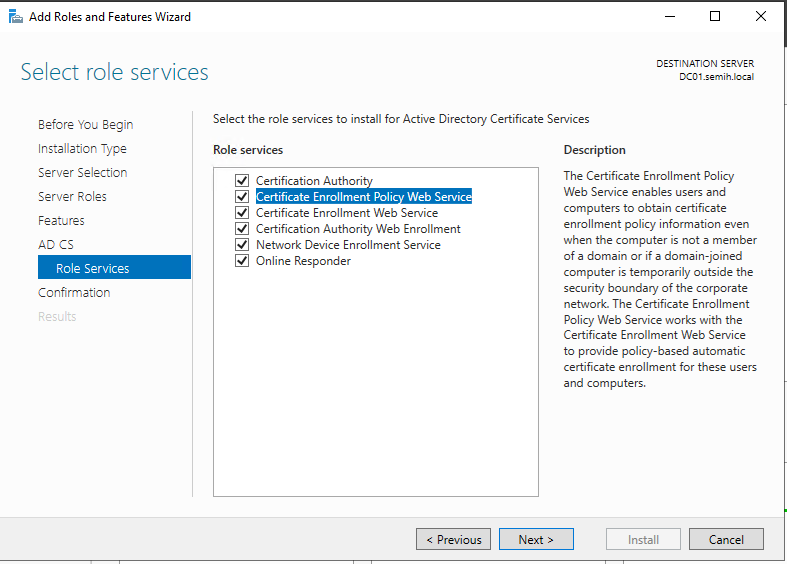

CA için kullanılacak features lar seçilir. Ben tüm servisleri seçiyorum. İhtiyaca göre gerekli servisler seçilerek kurulabilir. AD CS ile birlikte ISS in kuruluma da gerçekleşir.



Machine generated alternative text:
Add Roles and Features Wizard
Select role services
Before You Begin
Installation Type
Server Selection
Server Roles
Features
CS
Role Services
Confirmation
DESTINATION SERVER
Select the mle services to install for Active Directory Certificate Services
Role services
Certification Authori
Certificate Enrollment PO Ii Web Service
Certificate Enrollment Web Service
Certification Authority Web Enrollment
Network Device Enrollment Service
Description
The Certificate Enrollment Policy
Web Service enables users and
computers to obtain certificate
enrollment policy information even
when the computer is not a member
of a domain or a domain-joined
computer is temporarily outside the
security boundary of the corporate
network. The Certificate Enrollment
Policy Web Serv'ice works with the
Certificate Enrollment Web Service
to prcwide policy-based automatic
certificate enrollment for these users
and computers.
Install
Cancel



Kurulumdan sonra post-deployment çalıştırılır.

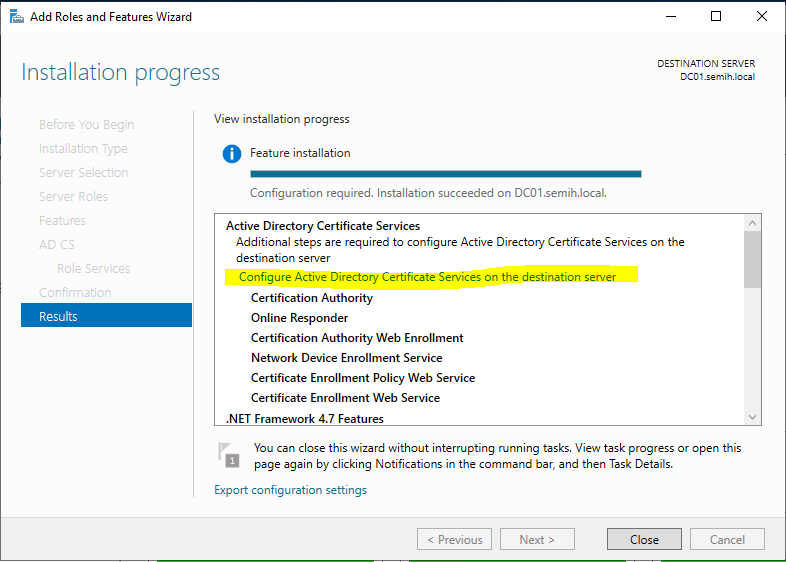

Machine generated alternative text:
Add Roles and Features Wizard
Installation progress
Wew installation progress
o
Feature installation
Configuration required. Installation succeeded on DCOI semih.local.
Active Directory Certificate Services
DESTINATION SERVER
Results
Additional steps are required to configure Active Directory Certificate Services on the
destination server
Configure Active Directory Certificate Services on the destination server
Certification Authority
Online Responder
Certification Authority Web Enrollment
Network Device Enrollment Service
Certificate Enrollment Policy Web Service
Certificate Enrollment Web Service
.NET Framework 4.7 Features
You can close this wizard without interrupting nanning tasks. View task progress or open this
page again by clicking Notifications in the command bar, and then Task Details.
Export configuration settings
Close
Cancel

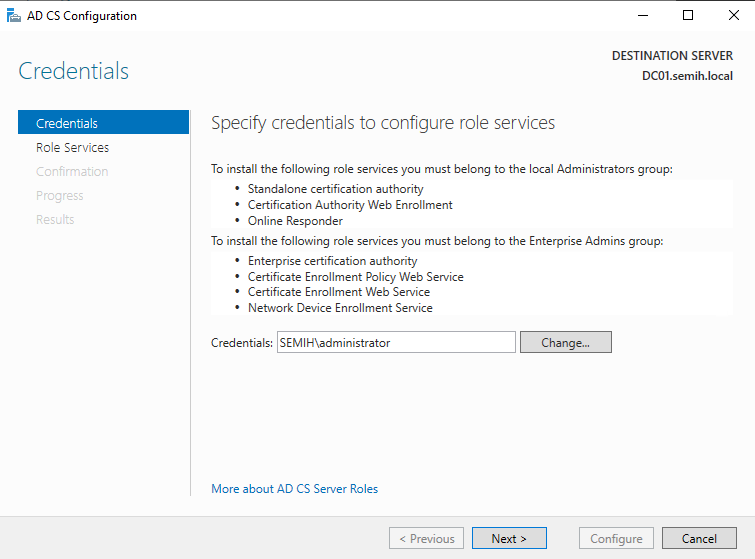

Machine generated alternative text:
AD CS Configuration
Credentials
Credentials
Role Services
Cc:rfrmetior
DESTINATION SERVER
DCOI.semih.IocaI
Spec'
To install the following role services you must belong to the local Administrators group:
• Standalone certification authority
• Certification Authority Web Enrollment
Online Responder
To install the following role services you must belong to the Enterprise Admins græp:
• Enterprise certification authority
• Certificate Enrollment Policy Web Service
• Certificate Enrollment Web Serv'ice
Network Device Enrollment Service
Credentials: SEMIH\administrator
More about AD CS Server Roles
Previous
Change.„
Next
Configure
Cancel

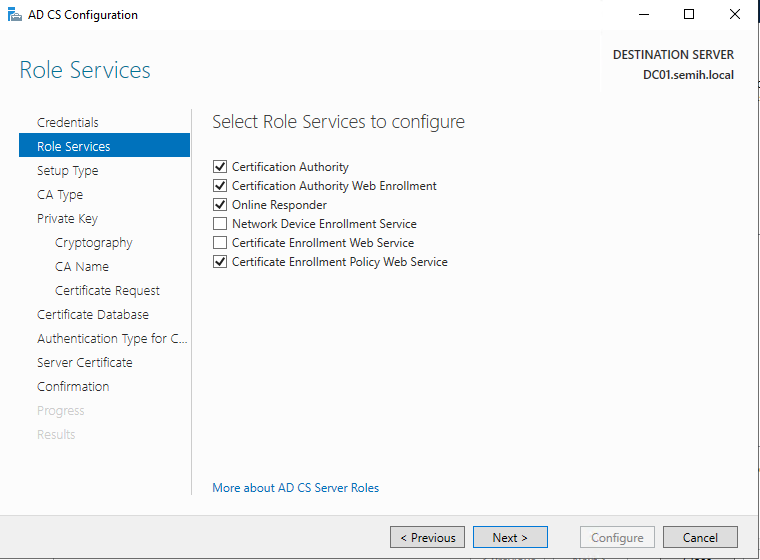

AD CS in her servisi ayrı olarak tek tek konfigure edebilir.



AD CS kurulu olmadan Network Device Enrollement ve Certificate Entollment Web Service kurulumu gerçekleştirilmemektedir.



Machine generated alternative text:
AD CS Configuration
Role Services
Cr.der-.iels
Role Services
Setup Type
CA Type
Private Key
Cryptography
CA Name
Certificate Reguest
Certificate Detebese
Authentication Type for C..
Server Certificate
Confirmation
DESTINATION SERVER
DCOI.semih.IocaI
Select Role Services to configure
Certification Authority
g] Certification Authority Web Enrollment
g] Online Responder
Network Device Enrollment Service
Certificate Enrollment Web Service
g] Certificate Enrollment Policy Web Service
More about AD CS Server Roles
Configure
Cancel

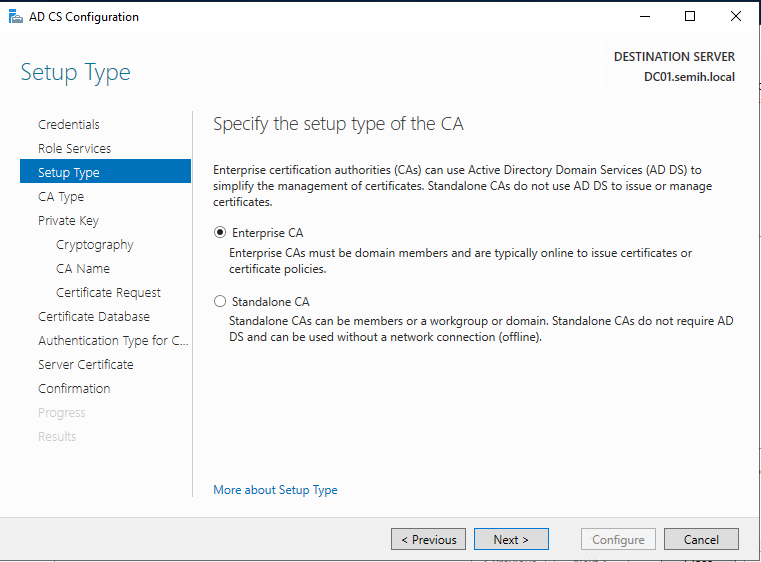

Yazının başında belirttiğim gibi Enterprise veya Standalone CA kurulumdan hangisini gerçekleştireceksek ilgili CA tipi seçilir ve kurulum başlatılır.



Machine generated alternative text:
AD CS Configuration
Setup Type
Credentials
Role Services
Setup Type
CA Type
Private Key
Cryptography
CA Name
Certificate Reguest
Certificate Detebese
Authentication Type for C..
Server Certificate
Confirmation
DESTINATION SERVER
DCOI.semih.IocaI
Specify the setup type of the CA
Enterprise certification authorities (CAs) can use Active Directory Domain Seæices (AD DS) to
simpli%' the management of certificates. Standalone CAS do not use AD DS to issue or manage
certifi cates.
@ Enterprise CA
Enterprise CAS must be domain members and are typically online to issue certificates or
certificate policies.
C) Standalone CA
Standalone CAS can be members or a workgroup or domain. Standalone CAS do not require AD
DS and can be used without a network connection (offline).
More about Setup Type
Configure
Cancel

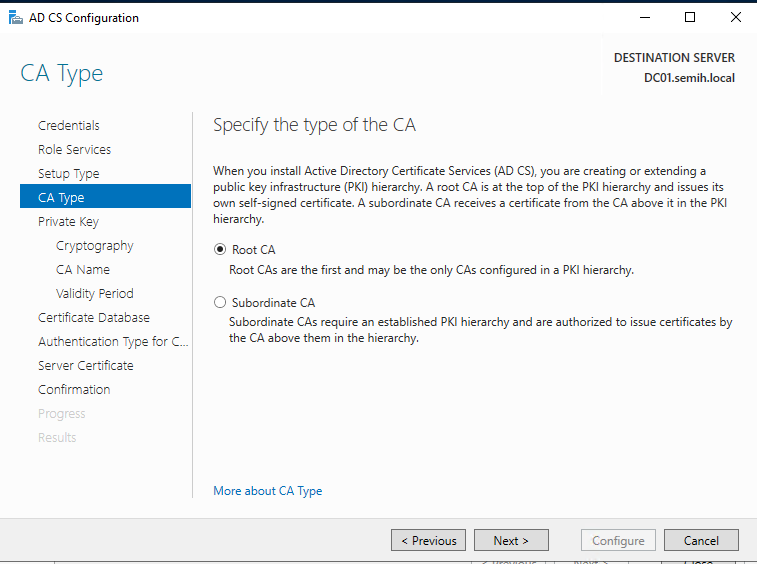

Root CA ilk kurulan CA dir. Subordinate CA ise child ca gibi düşebilirsiniz.



Machine generated alternative text:
AD CS Configuration
CA Type
Credentials
Role Services
Setup Type
CA Type
Frivete Key
Cryptography
CA Name
Validity Period
Certificate Detebese
Authentication Type for C..
Server Certificate
Confirmation
DESTINATION SERVER
DCOI.semih.IocaI
Specify the type of the CA
When you install Active Directory Certificate Services (AD CS), you are creating or extending a
public key infrastructure (PKI) hierarchy. A root CA is at the top of the PKI hierarchy and issues its
own self-signed certificate. A subordinate CA receives a certificate from the CA above it in the PKI
hierarchy.
@ Root CA
Root CAS are the first and may be the only CAS configured in a PKI hierarchy.
C) Subordinate CA
Subordinate CAS require an established PKI hierarchy and are authorized to issue certificates by
the CA above them in the hierarchy
More about CA Type
Configure
Cancel

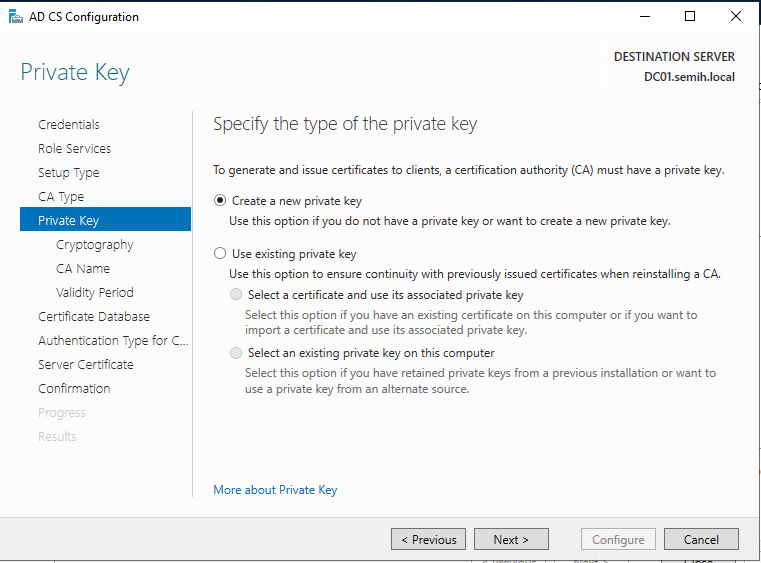

İlk kurulumda CA için bir private key oluşturulması sağlanır. Backup\Restore veya upgrade seçeneklerinde diğer seçenek ile kurulum yapılır.



Machine generated alternative text:
AD CS Configuration
Private Key
Credentials
Role Services
Setup Type
ca Type
Private Key
Cryptography
CA Name
Validity Period
Certificate Detebese
Authentication Type for C.
Server Certificate
Confirmation
DESTINATION SERVER
DCOI.semih.IocaI
Specify the type of the private key
To generate and issue certificates to clients, a certification authority (CA) must have a private key.
@ Create a new private key
use this option if you do not have a private key or want to create a new private key.
C) use existing private key
use this option to ensure continuity with previously issued certificates when reinstalling a CA.
O
Select a certificate and use its associated private key
Select this option if you have an existing certificate on this computer or if you want to
import a certificate and use its associated private key.
O
Select an existing private key on this computer
Select this option if you have retained private keys from a previous installation or want to
use a private key from an alternate source.
More about Private Key
Configure
Cancel

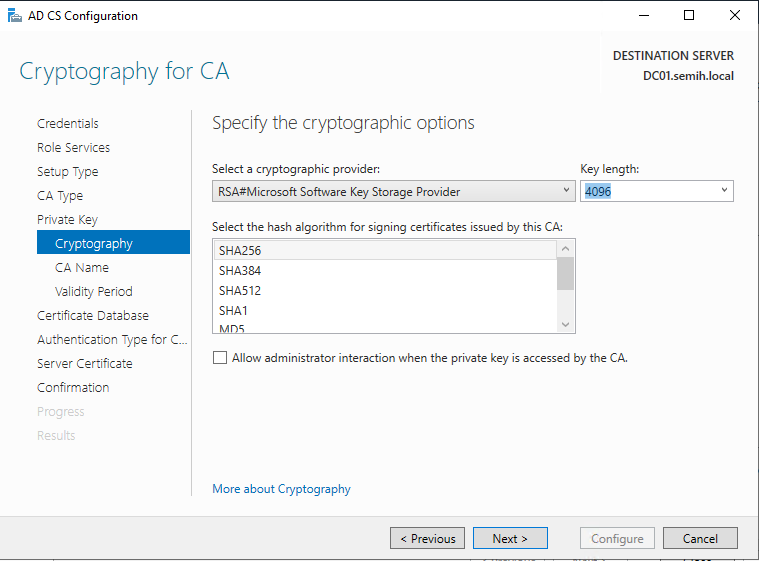

AD CS için cryptographic provider seçimi gerçekleştirilir.



Machine generated alternative text:
AD CS Configuration
Cryptography for CA
Credentials
Role Services
Setup Type
CA Type
Private Key
Cryptography
CA Name
Validity Period
Certificate Detebese
Authentication Type for C..
Server Certificate
Confirmation
Specify the cryptographic options
Select a cryptographic provider:
RSA#Microsoft Software Key Storage Provider
DESTINATION SERVER
DCOI.semih.IocaI
Key length:
Select the hash algorithm for signing certificates issued by this CA:
SHA256
SHA3U
SHA512
SHAI
Allow administrator interaction when the private key is accessed by the CA.
More about Cryptography
Configure
Cancel

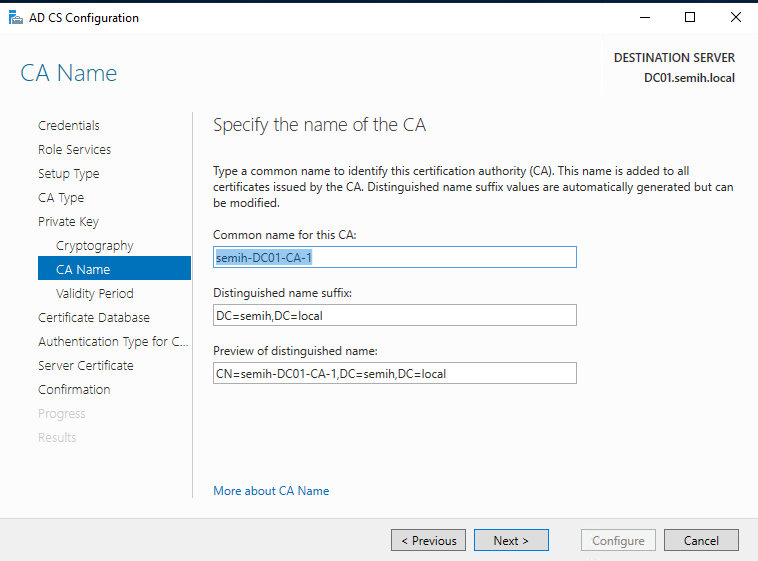

Machine generated alternative text:
AD CS Configuration
CA Name
Credentials
Role Services
Setup Type
CA Type
Private Key
Cryptography
CA Name
Validity Period
Certificate Detebese
Authentication Type for C..
Server Certificate
Confirmation
DESTINATION SERVER
DCOI.semih.IocaI
Specify the name of the CA
Type a common name to identify this certification authority (CA). This name is added to all
certificates issued by the CA. Distinguished name suffix values are automatically generated but can
be modified.
Common name for this CA:
Distinguished name suffix:
Preview of distinguished name:
More about CA Name
Configure
Cancel

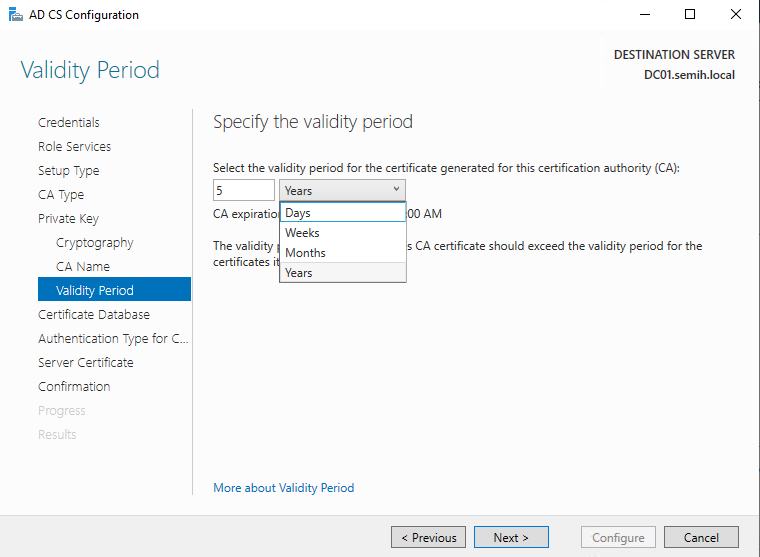

Sertifikanın kullanım alanına göre sertifikanın kaç gün\yıl ile expire olacağı seçilir. Kullaılacak senarya göre gün olarak seçilebildiği gibi genelde sunucularda 2-3 yıl olarak seçilir.

Machine generated alternative text:
AD CS Configuration
Validity Period
Credentials
Role Services
Setup Type
CA Type
Private Key
Cryptography
CA Neme
Glidit•j Period
Certificate Database
Authentication Type for C..
Server Certificate
Confirmation
DESTINATION SERVER
DCOI.semih.IocaI
Specify the validity period
Select the validity period for the certificate generated for this certification authority (CA):
CA expiratio
The validity
certificates i
Years
Days
Months
Years
CA certificate should exceed the validity period for the
More about Validity Period
Configure
Cancel

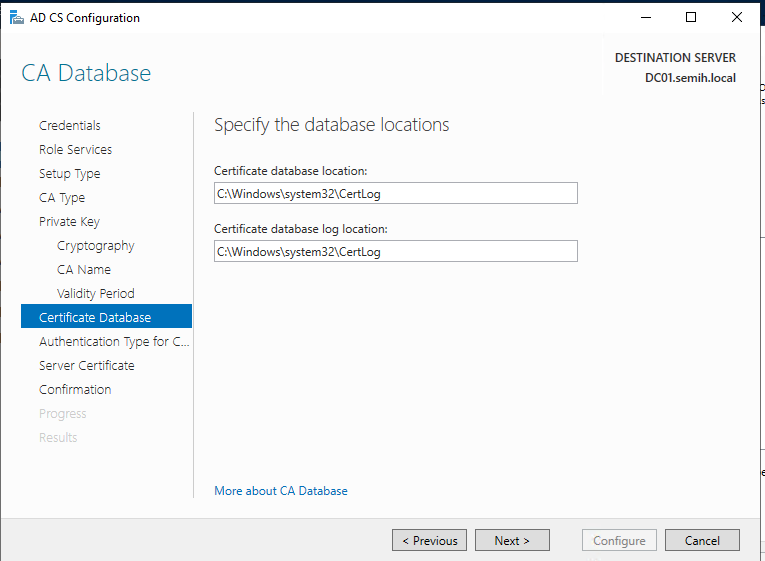

Machine generated alternative text:
AD CS Configuration
CA Database
Credentials
Role Services
Setup Type
CA Type
Private Key
Cryptography
CA Name
Velidit•j Period
Certificate Database
Authentication Type for
Server Certificate
Confirmation
DESTINATION SERVER
DCOI.semih.IocaI
Specify the database locations
Certificate database location:
Certificate database log location:
More about CA Database
Configure
Cancel

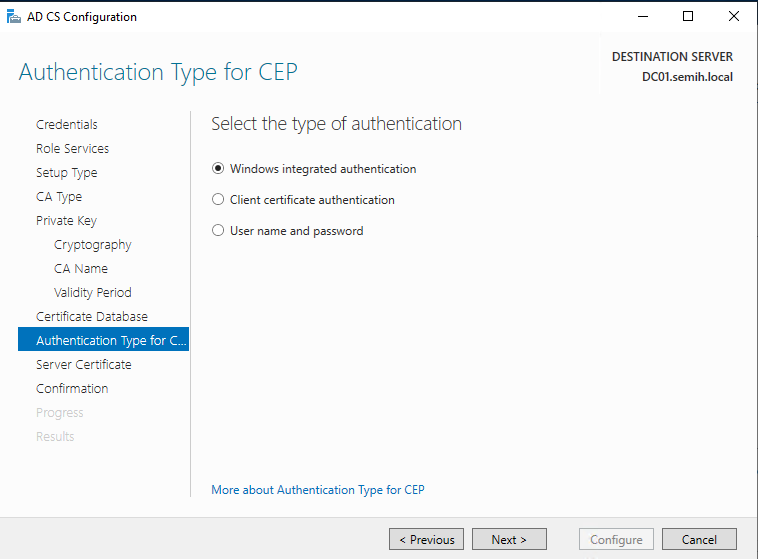

Sertifikamız domain ortamında olduğu için Windows Integrated olarak çalışması gerekmektedir. AD_Level Auth olarak kullanılır.



Machine generated alternative text:
AD CS Configuration
Authentication Type for CEP
DESTINATION SERVER
DCOI.semih.IocaI
Credentials
Role Services
Setup Type
CA Type
Private Key
Cryptography
CA Name
Validity Period
Certificete Detebese
Authentication Type for CM
Server Cerzificete
Confirmation
Select the type of authentication
@ Windows integrated authentication
C) Client certificate authentication
C) user name and password
More about Authentication Type for CEP
Configure
Cancel

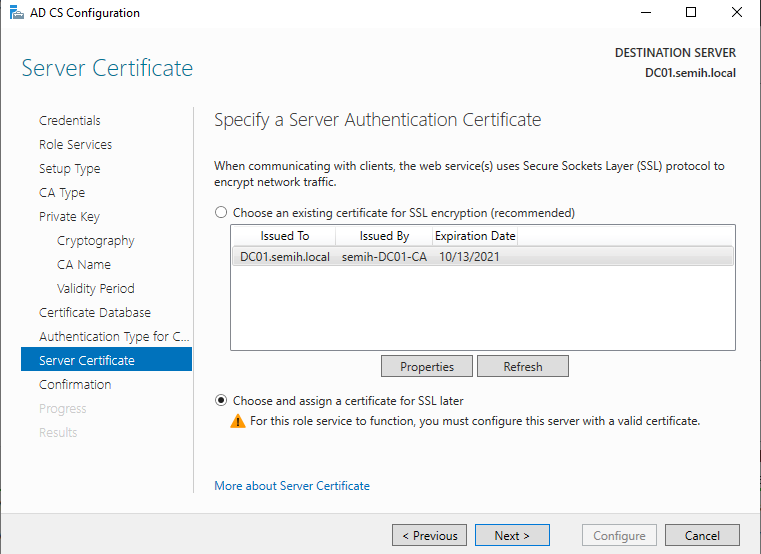

AD CS için daha sonra bir sertifika konfigurasyonu yapacağım için bu seçeneği seçiyorum.



Machine generated alternative text:
AD CS Configuration
Server Certificate
Credentials
Role Services
Setup Type
CA Type
Private Key
Cryptography
CA Name
Validity Period
Certificate Detebese
Authentlceticn Type for
Server Certificate
Confirmation
DESTINATION SERVER
DCOI.semih.IocaI
Specify a Server Authentication Certificate
When communicating with clients, the web service(s) uses Secure Sockets Layer (SSL) protocol to
encrypt network traffic.
C) Choose an existing certificate for SSL encryption (recommended)
Issued To
Issued By Expiration Date
DC01.semih.local semih-DC01-CA 10/13/2021
@ Choose and assign a certificate for SSL later
For this role service to function, you must configure this server with a valid certificate.
More about Server Certificate
Configure
Cancel

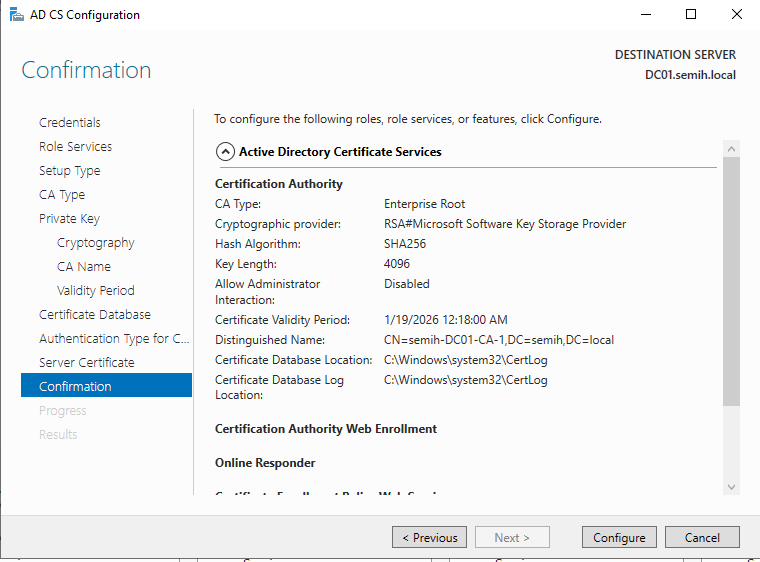

Machine generated alternative text:
AD CS Configuration
Confirmation
Credentials
Role Services
Setup Type
CA Type
Private Key
Cryptography
CA Name
Validity Period
Certificate Database
Authentication Type for C..
Server Certificate
Confirmation
DESTINATION SERVER
DCOI.semih.IocaI
To configure the following roles, mle services, or features, click Configure.
Active Directory Certificate Services
Certification Authority
CA Type:
Cryptographic provider:
Hash Algorithm:
Key Length:
Allow Administrator
Interaction:
Certificate Validity Period
Distinguished Name:
Certificate Database Location:
Certificate Database Log
Location:
Enterprise Root
RSA#Microsoft Software Key Storage Provider
SHA256
Disabled
1/19/2026 AM
Certification Authority Web Enrollment
Online Responder
< Previous
Next

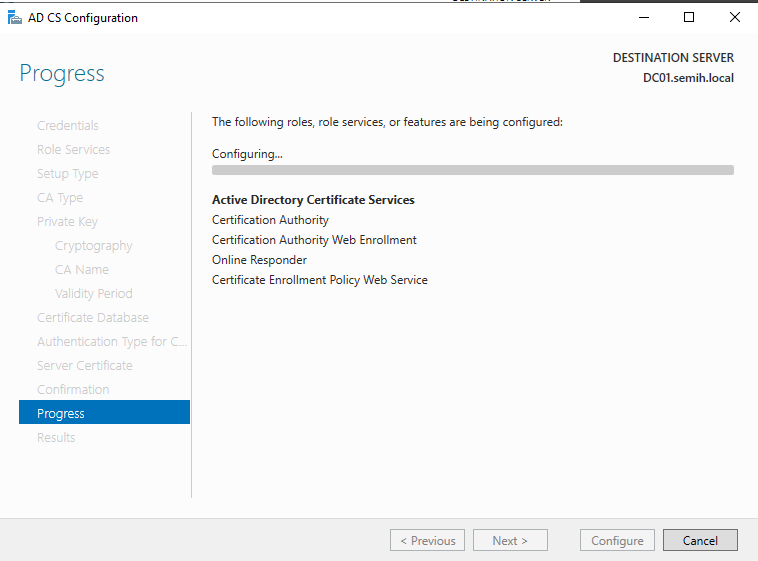

Machine generated alternative text:
AD CS Configuration
Progress
cryptography
CA Name
Certifiæte
AL -ype for
Server Cer_ificete
Progress
The following roles, role services, or features are being configured:
Configuring...
Active Directory Certificate Services
Certification Authority
Certification Authority Web Enrollment
Online Responder
Certificate Enrollment Policy Web Service
DESTINATION SERVER
DCOI.semih.IocaI
Cancel

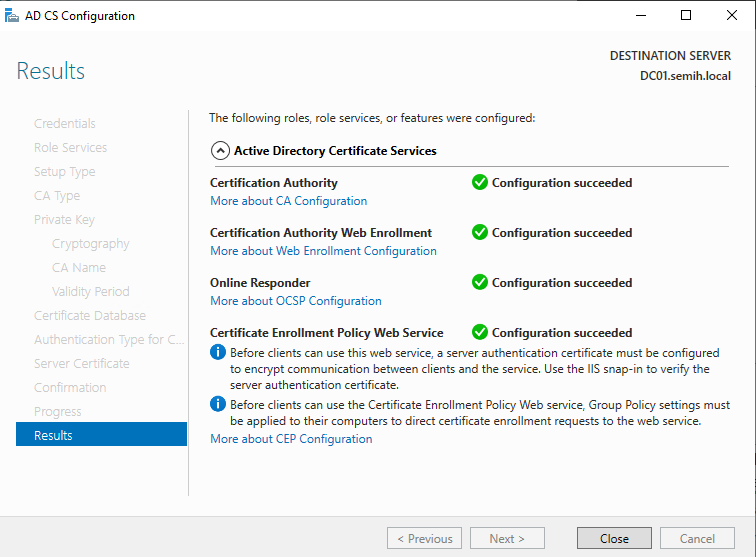

İlk kurulum tamamlanmıştır.



Machine generated alternative text:
AD CS Configuration
Results
Cryptography
CA
Certifiæt±
Q, -ype for C..
Server Cer_ificete
Cc:rfrmetior
Results
DESTINATION SERVER
DCOI.semih.IocaI
The following roles, role services, or features were configured:
Active Directory Certificate Services
Certification Authority
More about CA Configuration
Certification Authority Web Enrollment
More about Web Enrollment Configuration
Online Responder
More about OCSP Configuration
Certificate Enrollment Policy Web Service
Configuration succeeded
e Configuration succeeded
Configuration succeeded
Configuration succeeded
O Before clients can use this web service, a server authentication certificate must be configured
to encrypt communication between clients and the service. use the IIS snap-in to verify the
server authentication certificate.
O Before clients can use the Certificate Enrollment Policy Web service, Group Policy settings must
be applied to their computers to direct certificate enrollment requests to the web service.
More about CEP Configuration
Close
Cancel

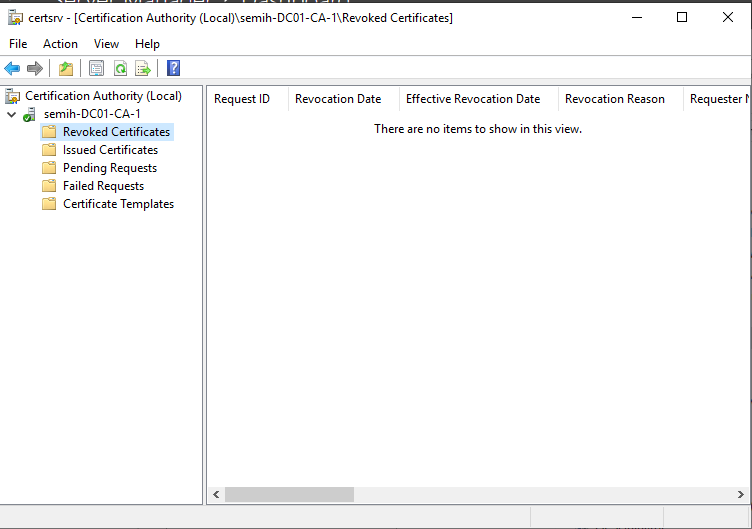

Machine generated alternative text:
certsrv [Certification Authority I\Revoked Certificates]
File Action View Help
Cetification Authority (Local)
semih-DC01-CA-1
Revoked Ce rtificates
Issued Certificates
Pending Requests
Failed Requests
Certificate Templates
Request ID
Revocation Date
Effective Revocation Date
Revocation Reason
Requester
There are no items to show in this view.



Var bir klasörü aşağıdaki gibi encrypt edersem domaindeki account um otomatik olarak AD CS ten bir sertifika alacak ve alınan sertifika IE üzerinden aşağıdaki gibi görülebilecek.



Machine generated alternative text:
Test Properties
Advanced Attributes
Attribut
Choose the settings pu want for this folder
When you dick OK or Apply on the Proper tes dialog, you will be
asked if you vvant the changes to affect all subfolders and fles
as nell
Archive and Index attributes
Folder is ready for archiving
Z] Allon fles in this folder to have contents indexed in addition to file
oper tes
Compress or Encrypt attributes
Compress contents to save disk space
Z] Encrypt contents to secure data

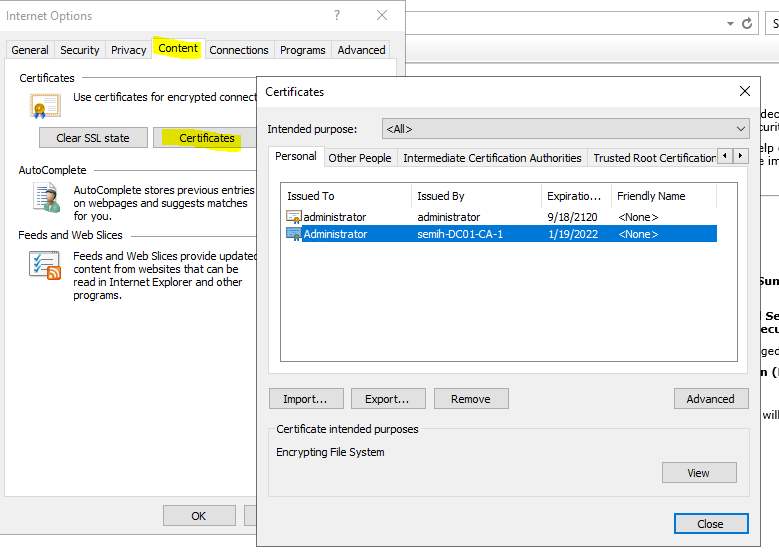

Machine generated alternative text:
Internet Options
General Security Privacy Content Connections Programs
Cert fica tes
Certificates
use certficates for encrypted
Advanced
Intended purgu)se:
Per sonal Other People
Issued To
administrator
Administrator
Intermediate Certficabon Authorities Trusted Root Certficabor
AutoComplete
AutoComplete stores previous entries
on vvebpages and suggests matches
for you
Feeds and Web Slices
Feeds and Web Slices provide upda
content from nebsites that can be
read in Internet Explorer and other
programs.
Issued 8 y
administrator
semih0C01CA-1
Expirabo...
9/18/2120
1/19/2022
Friendly Name
Cert ficate intended purposes
Encrypting File System

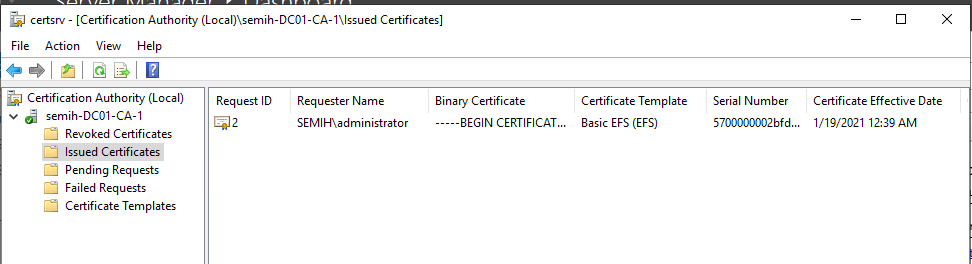

Sertifika ayrıca aşağıdaki Issued Certificates te görülmektedir. Sertifika temlate I olarak ta Basic EFS sertifikası client için issue edilmiştir.



Machine generated alternative text:
certsrv - [Certification Authority I\lssued Certificates]
File Action View Help
Cetification Authority (Local)
semih-DC01-CA-1
Revoked Certificates
Issued Certificates
Pending Requests
Failed Requests
Certificate Templates
Request ID
Requester Name
SEMI H\administrator
Binary Certificate
- --8EGIN CERTIFICAT...
Certificate Template
Basic EFS (EFS)
Serial Number
57DDDDDD02bfd...
Certificate Effective Date
1/19/2021 1239 AM

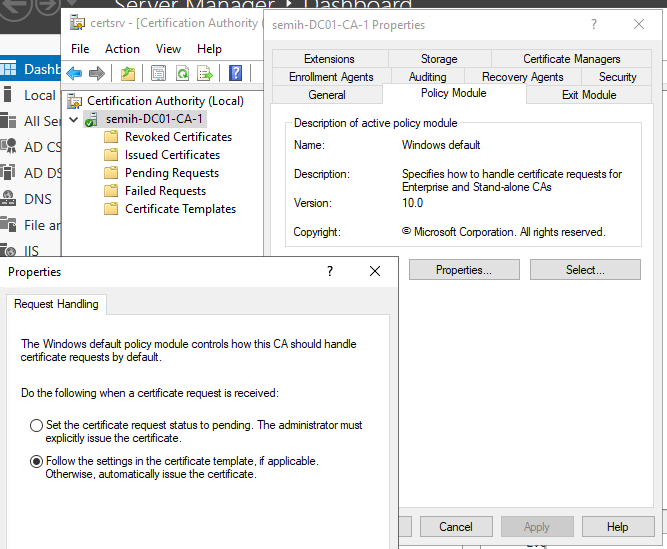

EFS gibi sertifikaların otomatik issue edilmeyin Pending Request te beklemesi ve bir admin in bu sertifikayı issue etmesi gerekiyorsa aşağıdaki seçenek ile değişiklik yapılır.



Machine generated alternative text:
semih-DCOI-CA-I Properties
Dasht
i Local
ii All se
ADC
iäi ADD
DNS
File a
certsrv - [Certification Authority
File Action View Help
Certification Authority (Local)
semih-DC01-CA-1
Revoked Certificates
Issued Certificates
Pending Requests
Failed Requests
Certificate Templates
Extensions
Enrollment Agents
Storage
Auditing
Certificate Managem
Recovery Agents Security
Pohcy Module
Descnption of active policy module
Windows default
Specifies how to handle certificate requests for
Enterprise and Stand-alone CAS
100
@ Micmsoft Corporation Al fights reserved
Properties
Request Handling
The Windows default policy module controls how this CA should handle
certificate requests by default
Do the following when a certificate request is received
C) Set the certificate request status to pending The adminstrator must
explicitly issue the certificate
@ Follow the settings in the certificate template. f applicable
Otherwise. automatically issue the certificate

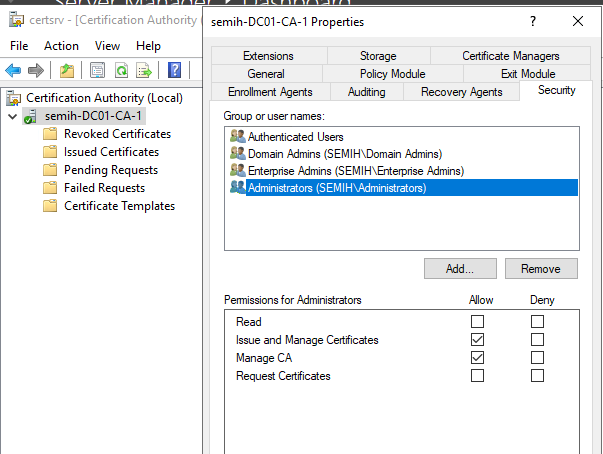

Kurulmak istenen PKI altyapısına göre hangi kullanıcı\grup lara hangi yetkiler verilmek isteniyorsa securty tabında ilgili değişiklikler yapılır.



Machine generated alternative text:
certsrv - [Certification Authority
File Action View Help
Certification Authority (Local)
semih-DC01-CA-1
Revoked Certificates
Issued Certificates
Pending Requests
Failed Requests
Certificate Templates
semih-DCOI-CA-I Properties
Extensions
Enrollment Agents
Group or user names:
Storage
Policy Module
Certificate Managem
Exit Module
Auditing Recovery Agents Security
Authenticated users
Domain Admins (SEMIH\Domain Admins)
Entevphse Admins (SEMIH\Entelphse Admins)
*dministratorz (SEMIHzædministratorz)
P emissions for Administrators
Issue and Manage Certificates
Manage CA
Request Certificates
Alo w
Deny



Sertifika templatelerine göre ilgili kullanıcı\gruplar için yetki verilebilir. 802.1x sertifika ları bir IT ekibi başka bir sertifika template ini başka bir IT ekibi gibi.

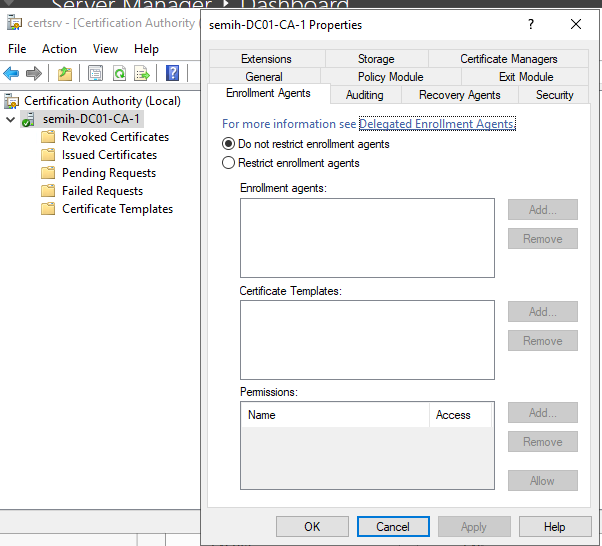

Delegasyon işlemlerinin yapıldığı yerdir.



Machine generated alternative text:
certsrv - [Certification Authority
File Action View Help
Certification Authority (Local)
semih-DC01-CA-1
Revoked Certificates
Issued Certificates
Pending Requests
Failed Requests
Certificate Templates
semih-DCOI-CA I Properties
Extensions
Enrollment Agents
Storage
P ohcy Module
Certificate Managem
Auditing Recovery Agents
Security
For more information see ele ated Enrollment A ents
@ Do not restrict enrollment agents
C) Restrict enrollment agents
Enrollment agents
Certificate Templatee
P emission e

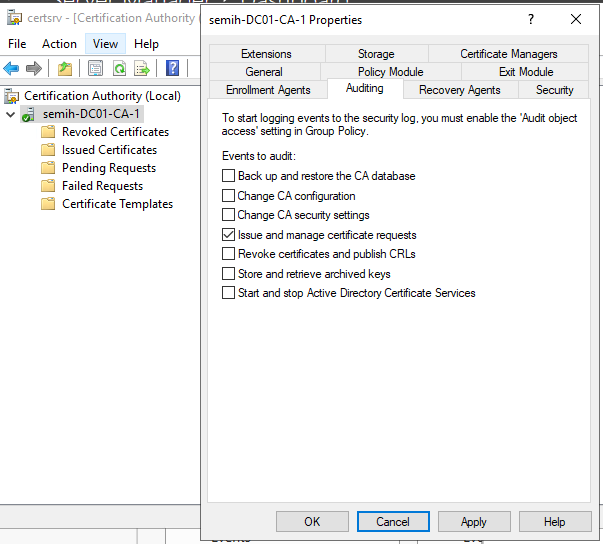

AD CS üzerindeki kim hangi işlemi yaptmış gibi bir log tutmak isteniyorsa aşağıdaki events to audit ten ilgili seçenekler seçilir.



Machine generated alternative text:
certsrv - [Certification Authority
File Action View Help
Certification Authority (Local)
semih-DC01-CA-1
Revoked Certificates
Issued Certificates
Pending Requests
Failed Requests
Certificate Templates
semih-DCOI-CA-I Properties
Extensions
Enrollment Agents
Storage
P olicy Module
Certificate Managem
Exit Module
Auditing
Reco very
To start logging events to the security Bg. you must enable the 'Audit object
access' setting in Group Policy
Events to audit
[3 Back up and restore the CA database
Change CA configuration
Change CA security settings
Z] Issue and manage certificate requests
Revoke certificates and publish CRLs
Store and retrieve archived keys
[3 Start and stop Active Directory Certificate Services

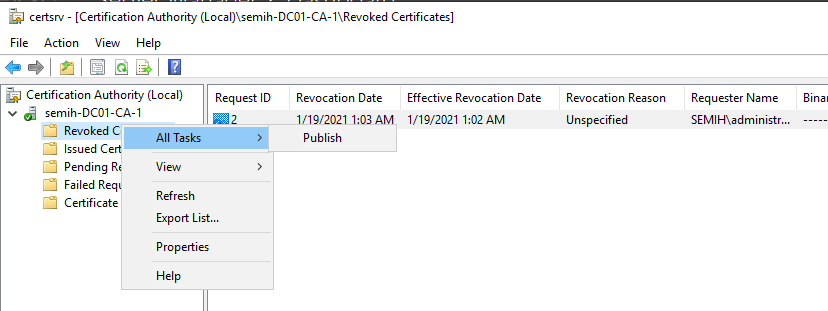

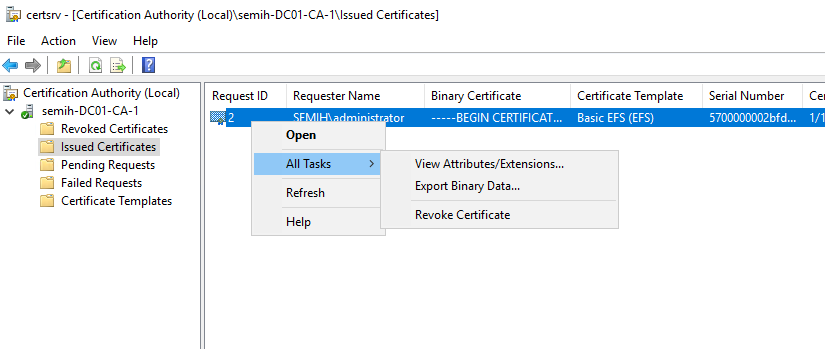

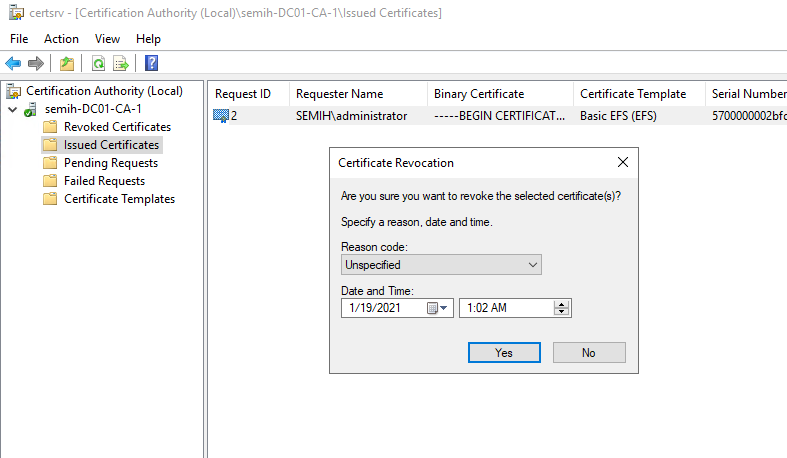

Issue edilen bir sertifika aşağıdaki gibi bir ihtiyaç nedeniylr revoke edilebilir.



Machine generated alternative text:
certsrv - [Certification Authority I \lssued Certificates]
File Action View Help
Cetification Authority (Local)
semih-DC01-CA-1
Revoked Certificates
Issued Certificat
es
Pending Requests
Failed Requests
Certificate Templates
Request ID
Requester Name
All Tasks
Refresh
Help
Binary Certificate
--8EGIN CERTIFICAT...
View Attributes/Extensions...
Export Binary Data...
Revoke Certificate
Certificate Template
Basic EFS (EFS)
Serial Number
5700000002bfd...



Machine generated alternative text:
certsrv - [Certification Authority -CA-Illssued Certificates]
File Action View Help
Cetification Authority (Local)
semih-DC01-CA-1
Revoked Certificates
Issued Certificates
Pending Requests
Failed Requests
Certificate Templates
Request ID
Requester Name
SEMI H\administrator
Binary Certificate
-BEGIN CERTIFICAT...
Certificate Template
Basic EFS (EFS)
Serial Number
57DDDDDD02bft
Certificate Revocation
Are you sure you want to revoke the selected certificate(s)?
Specify a reason date and time
Reason code
Unspecified
Date and Time



Machine generated alternative text:

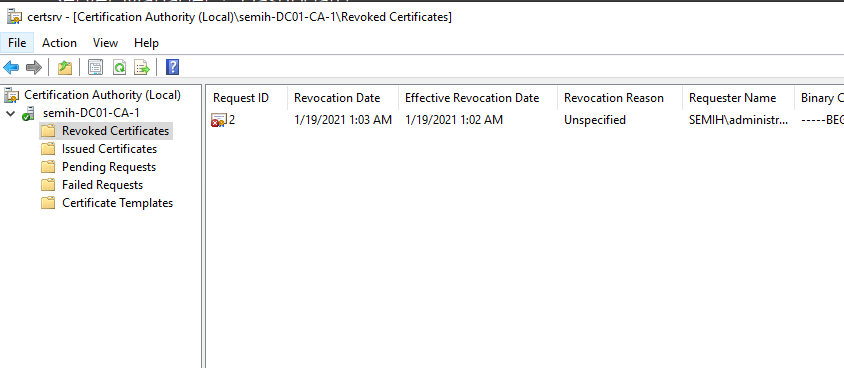

certsrv [Certification Authority I\Revoked Certificates]
File Action View Help
Certification Authority (Local)
semih-DC01-CA-1
Revoked Cetificates
Issued Certificates
Pending Requests
Failed Requests
Certificate Templates
Request ID
Revocation Date
1/19/2021 1:D3AM
Effective Revocation Date
1/19/2021 1:02AM
Revocation Reason
Unspecified
Requester Name
SEMIH\administr...
Binary



Machine generated alternative text:

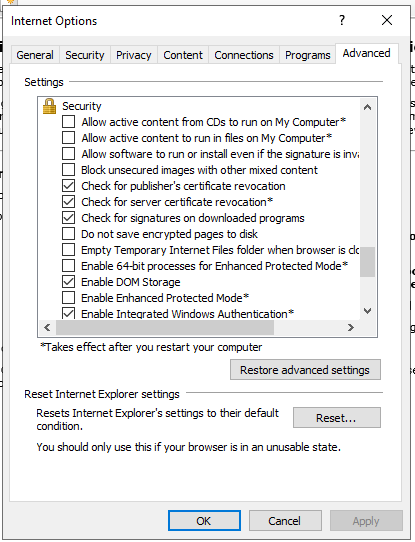

Internet Options
General Security
Se tbngs
Security
Privacy
Content
Connections
Programs
Allon active content from CDs to run on My Computer*
Allon actve content to run in fles on My Computer*
Allon software to run or install even if the signature isinv;
Block unsecured images with other mixed content
Check for publisher's certificate revocaton
Check for server certificate revocaton*
Check for signatures on downloaded programs
Do not save encrypted pages to disk
Empty Temporary Internet Files folder when browser is dc
Enable 64-bit processes for Enhanced Protected Mode*
Enable DOM Storage
Enable Enhanced Protected Mode*
Enable Intearated Windows Authentcabon*
*Takes effect after pu restart pur computer
Restore advanced settings
Reset Internet Explorer settings
Resets Internet Explorer's settings to their default
conditon
You should only use this if your browser is in an unusable state.

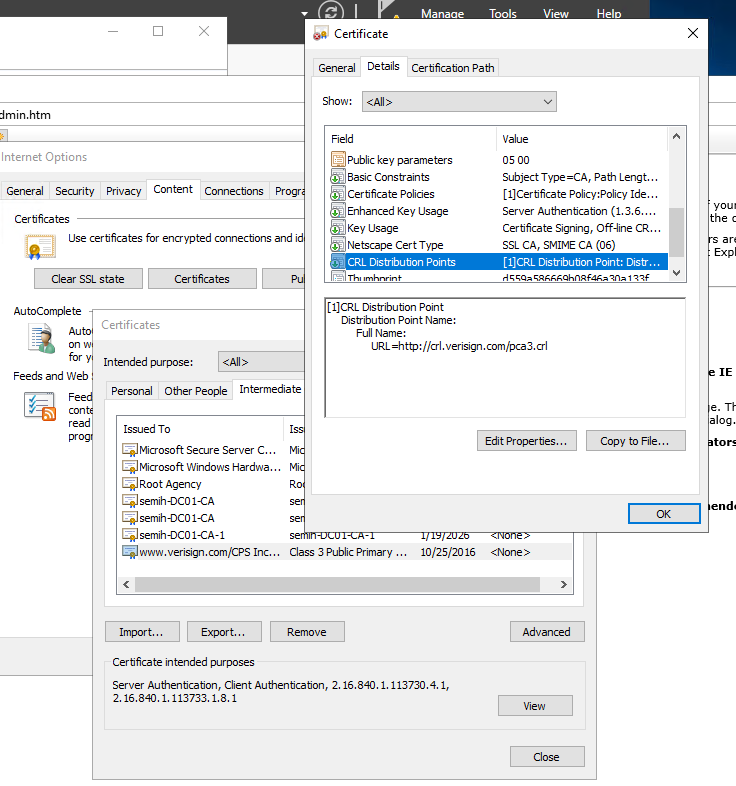

Her CA in bir CRL URL I vardır. Buradan daha önce dağıtılan sertifikalar revoke edilmiş mi kontrol edilir.





Remove edilen sertifikalarda AD CS te publish edilir.



Machine generated alternative text:
certsrv [Certification Authority I\Revoked Certificates]
File Action View Help
Certification Authority (Local)
semih-DC01-CA-1
Revoked C
Request ID
Revocation Date
19/2021
Publish
Effective Revocation Date
1/19/2021 1:02AM
Revocation Reason
Uns pecfied
Requester Name
SEMIH\administr...
Sinai
All Tasks
Issued Ce
Pending R
Failed Req
Refresh
Certificate
Export List...
Properties
Help



Machine generated alternative text:
certsrv - [Certification Authority -CA-IlRevoked Certificates]
File Action View Help
Certification Authority (Local)
semih-DC01-CA-1
es
Revoked Certificat
Issued Certificates
Pending Requests
Failed Requests
Certificate Templates
Request ID
Revocation Date
1/19/2021 1:D3AM
Effective Revocation Date
1/19/2021 1:02AM
Revocation Reason
Uns fied
Requester Name
SEMIH\administr...
Binary Certificate
-BEGIN CERTI..
Certificat
Basic EFS

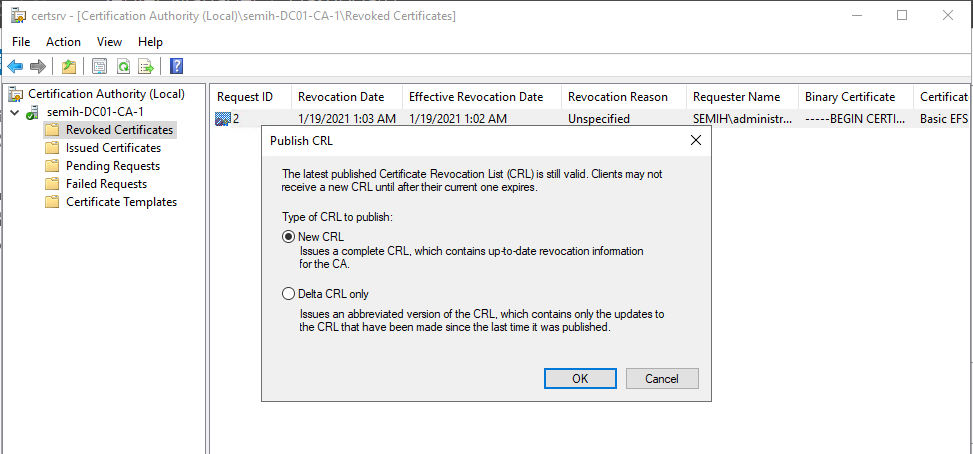

Publish CRL
The latest published Certificate Revocation Ljst (CRL)is Qill valid Clients maynot
receive a new CRL until after their current one expires
Type of CRL to publish
@ New CRL
Issues a complete CRL. which contains upkozate revocation information
for the CA
C) Delta CRL only
Issues an abbreviated version of the CRL. which contains only the updates to
the CRL that have been made since the last time t was published

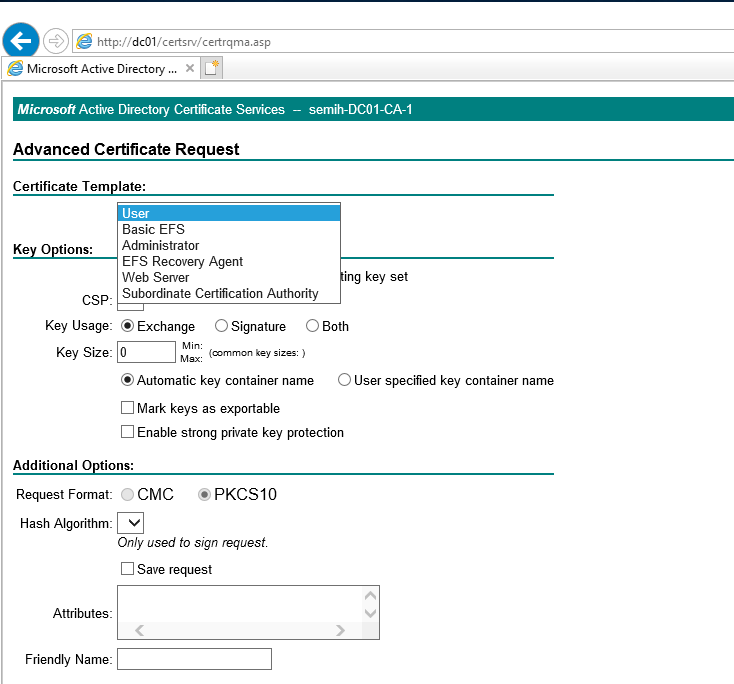

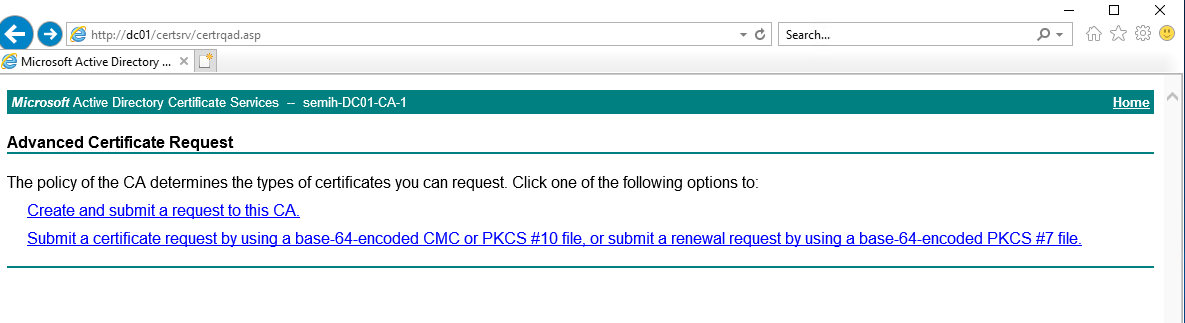

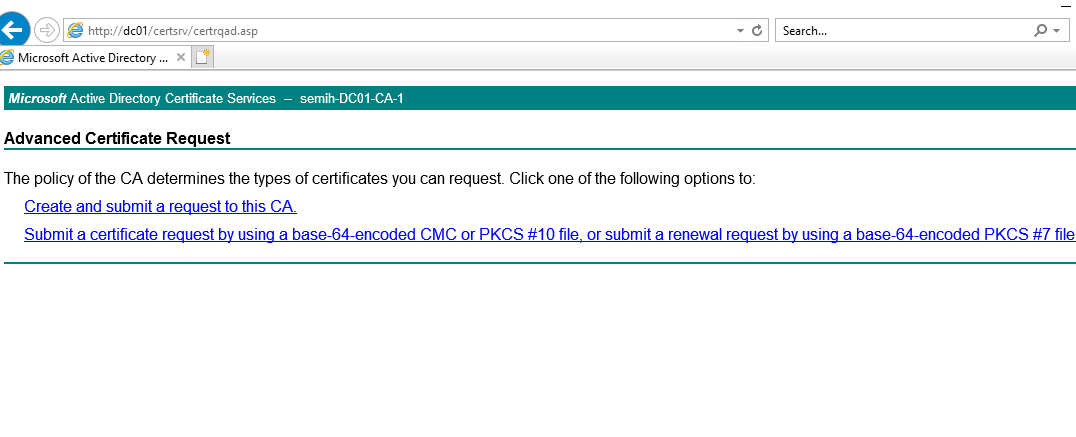

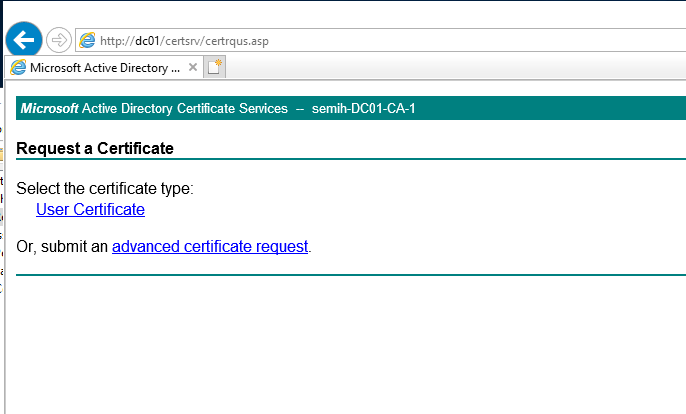

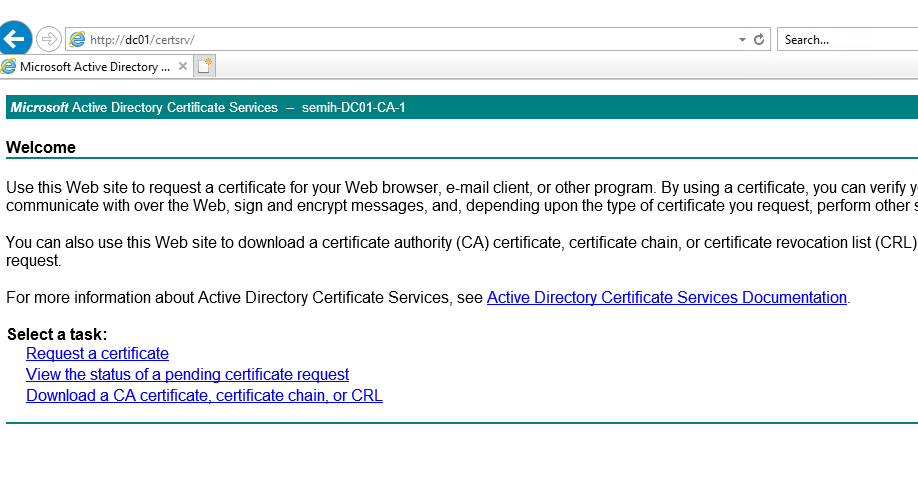

AD CS e web browser üzerinden http://adcsosname-veyaipadresi/certsrv ile erişilir. Bir sertifika requestinde de bulunabilir ayrıca CA Sertifikası da download edilebilir.



User sertifikası alınabildiği gibi ayrıca publish edilen sertifikalar da AD CS ten alınabilir.











Microsoft IIS üzerinden aşağıdaki adımlarla bir sertifika rewuesti yapılır. Daha sonra bu request CA üzerinden alınıp IIS teki Compate Certificate Request ile sonlandırılır.

Ayrıca bu request ile public certificate authority lerde sertifika alma ve import etme ile aynı yöntemdir.

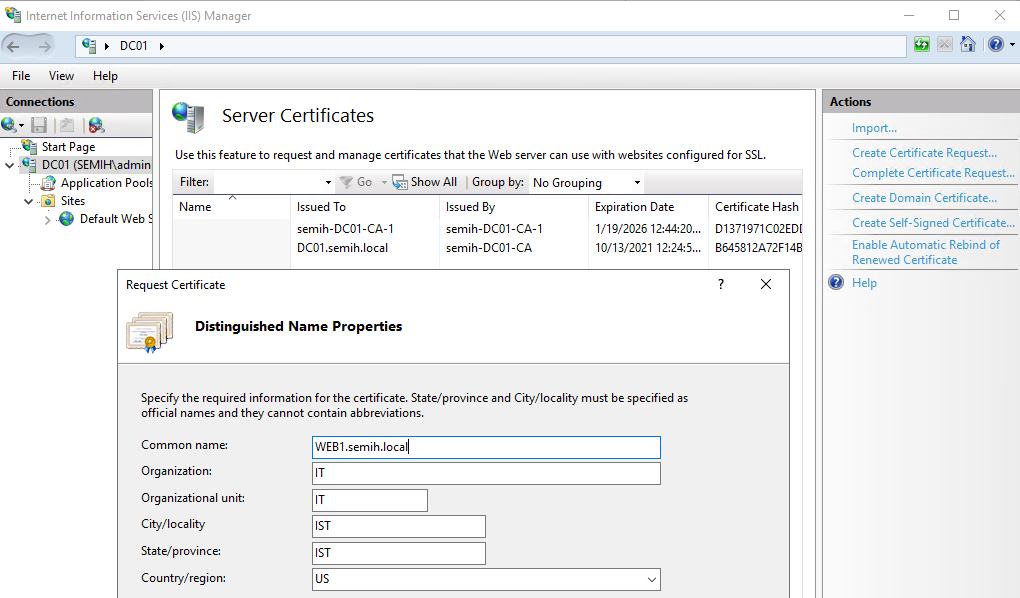

Machine generated alternative text:
Internet Information Services (IIS) Manager
View
Help
Server Certificates
Use this feature to request and manage certificates that the Web server can use with websites configured for SSL.
Start Page
DCOI (SEMIH\admi
Application Poo
v „ Sites
e Default Web
Filter:
Go • e Show All L Group by: No Grouping
Issued To
semih-DC01-CA-1
DCOI semih.local
Issued By
semih-DCOI -
CA-I
semih-DCOI-CA
Expiration Date
1/19/2026 124420...
10/13/2021 12245...
Certificate Hash
01371971 C02ED[
864S812A72F148
Import...
Create Certificate Request...
Complete Certificate Request...
Create Domain Certificate...
Create Self-Signed Certificate...
Enable Automatic Rebind of
Renewed Certificate
Help
Request Certificate
Distinguished Name Properties
Specify the required information for the certificate. State/province and City/localit,' must be specfied as
official names and they cannot contain abbreviations.
Common name:
Organization:
Organizational unit:
City/ loca
State/ province:
Country/region:
WEBI .semih.locall

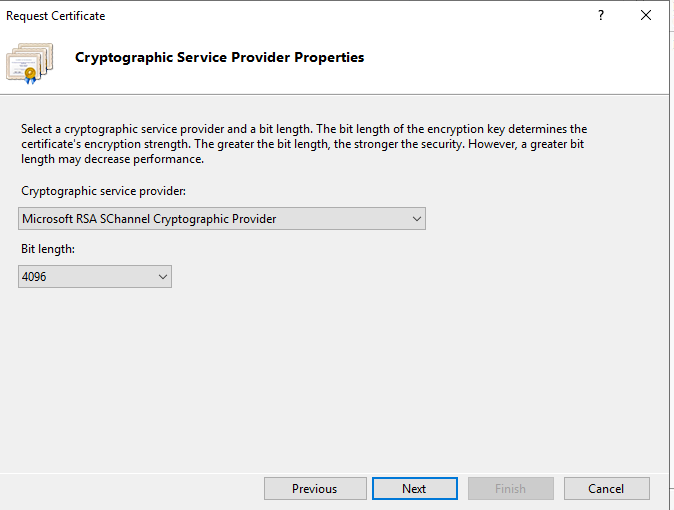

Machine generated alternative text:
Request Certificate
Cryptographic Service Provider Properties
Select a cryptographic service provider and a bit length. The bit length of the encryption key determines the
certificate's encryption strength. The greater the bit length, the stronger the security. However, a greater bit
length may decrease performance.
Cryptographic service provider.
Microsoft RSA SChanneI Cryptographic Provider
Bit length:
Previous



Machine generated alternative text:

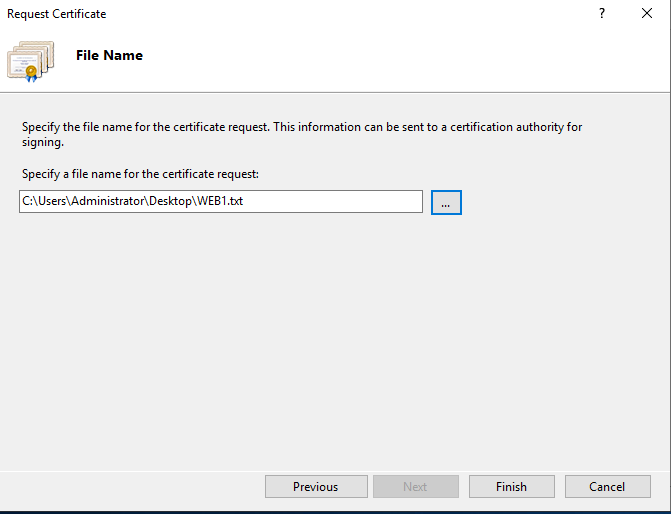

Request Certificate
File Name
Specify the file name for the certificate request. This information can be sent to a certification authority for
signing.
Specify a file name for the certificate request:
txt
Previous
Finish
Cancel

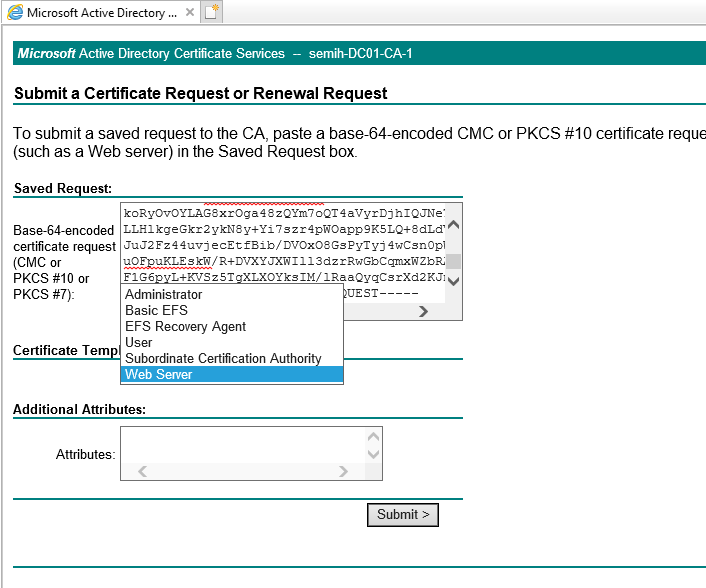

Machine generated alternative text:
Microsoft Active Directory X
Microsoft Active Directory Certificate Services — semih-DC01-CA-1
Submit a Certificate Request or Renewal Request
To submit a saved request to the CA, paste a base-64-encoded CMC or PKCS #10 certificate reque
(such as a Web server) in the Saved Request box.
Saved Request:
Base-64-encoded
certificate request
(CMC or
PKCS or
PKCS #7):
Certificate Tem
koRyov0YLAGSXloga4szQYm70Q14aVyrD3h1QJNe•
LLE1kgeGkr2ykNsy+Yi7szr4pW0app9KSLQ+SdLd'
4wcsnopi
JXWI 113dz IRwGbCgrrxWZbZ
FIG6 L+rvszsr XLXOYks1M/1RaaQygcsrXd2KJl
Administrator
Basic EFS
EFS Recovery Agent
User
Subordinate Certification Authori
Web Server
Additional Attributes:
Attributes:
VEST
Submit >

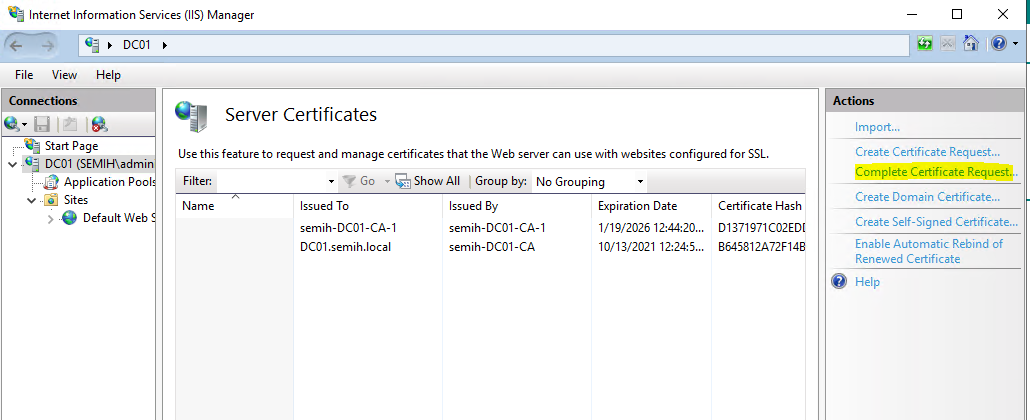

Machine generated alternative text:
Internet Information Services (IIS) Manager
View Help
Start Page
v DCOI (SEMIH\admi
Application Poo
v „ Sites
Default Web
Server Certificates
Use this feature to request and manage certificates that the Web server can use with websites configured for SSL.
Filter:
Go • e Show All L Group by: No Grouping
Issued To
semih-DC01 -CA-I
DCOI semih.local
Issued By
semih-DCOI -
CA-
semih- DCOI -CA
Expiration Date
1/19/2026 124420...
10/13/2021 12245...
Certificate Hash
01371971 C02ED[
864S812A72F148
Import...
Create Certificate Request...
Complete Certificate Request...
Create Domain Certificate...
Create Self-Signed Certificate...
Enable Automatic Rebind of
Renewed Certificate
Help

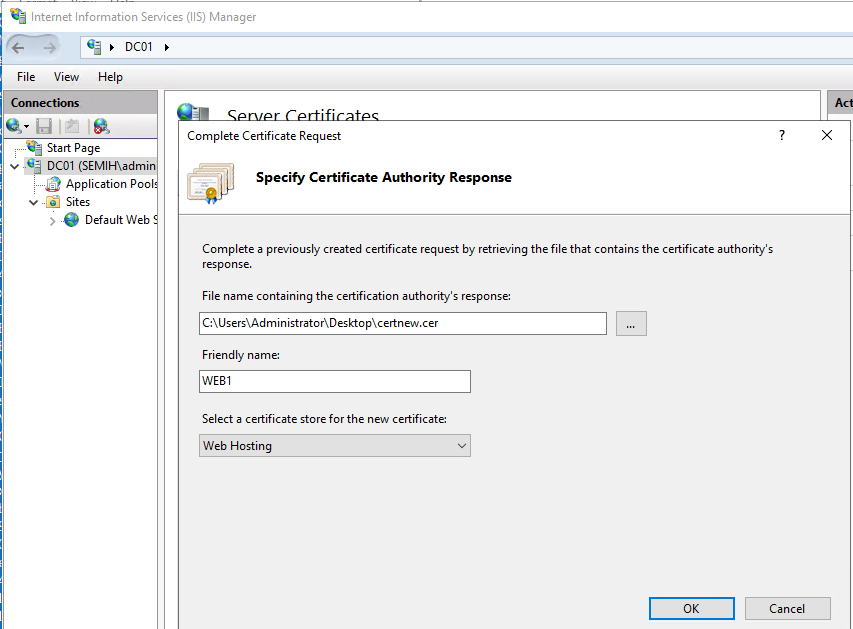

Machine generated alternative text:
Internet Information Services (IIS) Manager
View Help
Start Page
v DCOI (SEMIH\admi
Application Poo
v „ Sites
e Default Web
Complete Certificate Request
SpeciW Certificate Authority Response
Complete a previously created certificate request by retrieving the file that contains the certificate authority's
response.
File name containing the certification authority's response:
Friendly name:
WEBI
Select a certificate store for the new certificate:
Web Hosting
Cancel

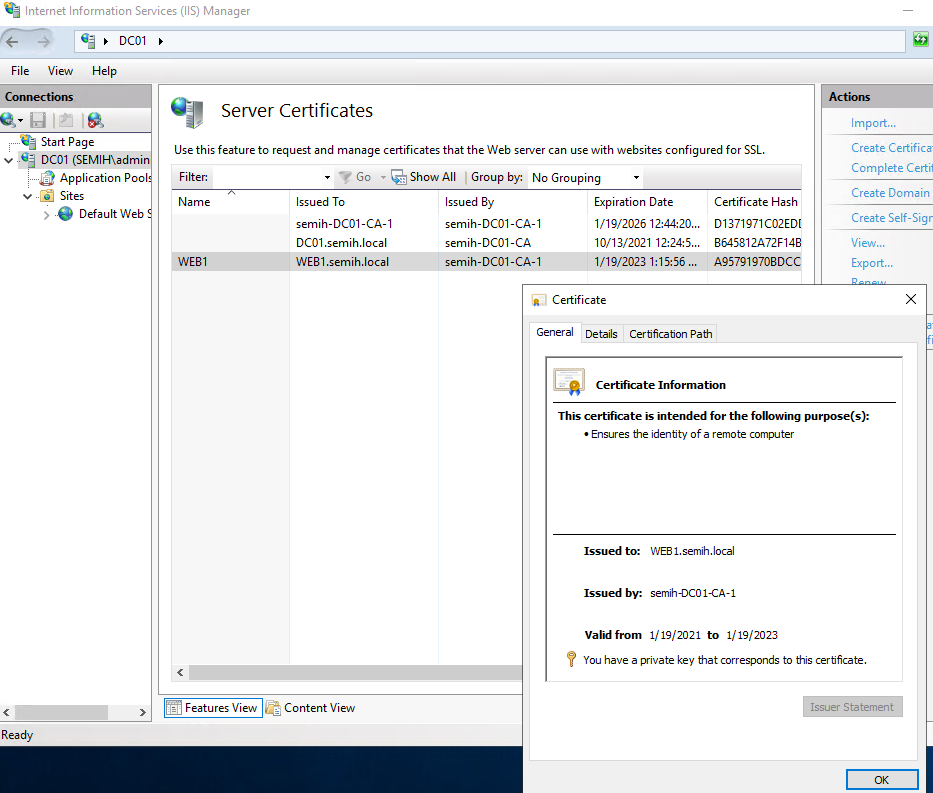

Machine generated alternative text:
Internet Information Services (IIS) Manager
DOI
View Help
Server Certificates
Use this feature to request and manage certificates that the Web server can use with websites configured for SSL.
Start Page
v DCOI (SEMIH\admi
Application Poo
v „ Sites
Default Web
Filter:
Name
Go • e Show All L Group by: No Grouping
Issued To
semih-DC01-CA-1
DCOI .semih.local
WEBI semih.local
Content View
Issued By
semih-DC01-CA-1
semih-DC01-CA
semih-DC01-CA-1
Expiration Date
1/19/2026 124420...
10/13/2021
1/19/2023
Certificate
Certificate Hash
01371971 C02ED[
8645812A72F148
A957919708Dcc
Import...
Create Certifica
Complete Certid
Create Domain
Create Self-Sigr
View...
Export...
General Details Certficabon Path
Certificate Info rmation
This certificate is intended for the following purpose(s):
• Ensures the identty of a remote computer
Issued to: WEE I. semih. local
Issued by: semih-DCO I-CA-I
Valid from 1/19/2021 to 1/19/2023
You have a private key that corresponds to this certficate.
Features View
Ready



Yoruma kapalı.

%d blogcu bunu beğendi:
